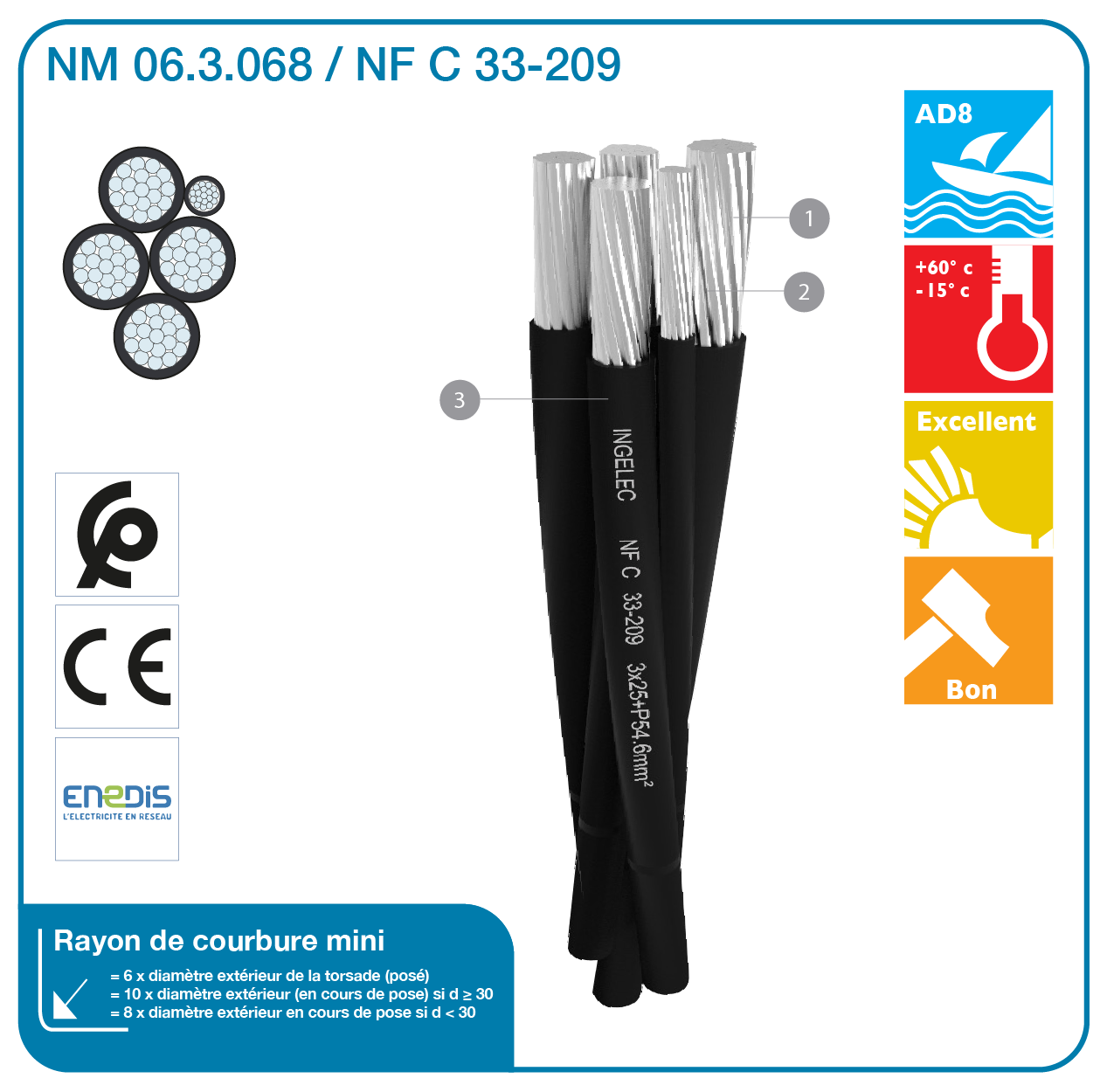

CÂBLE ISOLÉ 0.6/1KV TORSADÉ (DISTRIBUTION)

Code Imacab	Section (mm²)	Diamètre extérieur approx (mm)	Masse approx (Kg/Km)	Intensité admissible en ampères (1)		Chute de tension V/A/Km cosØ=0.8	Conditionnement standard T : Touret (m)
Code Imacab	Section (mm²)	Diamètre extérieur approx (mm)	Masse approx (Kg/Km)	A l’air libre 30°C	En terre 20°C	Chute de tension V/A/Km cosØ=0.8	Conditionnement standard T : Touret (m)
TRAC2501	3×25+P54.6	24	520	111	–	2.18	T 2000
TRAC2511	3×25+P54.6+1×16	25	570	111	83	2.18	T 2000
TRAC2521	3×25+P54.6+2×16	25	630	111	83	2.18	T 2000
TRAC3501	3×35+P54.6	26	600	138	–	1.62	T 2000
TRAC3511	3×35+P54.6+1×16	26	600	138	83	1.62	T 2000
TRAC3521	3×35+P54.6+2×16	27	720	138	83	1.62	T 2000
TRAC5001	3×35+P54.6	28	720	165	–	1.23	T 2000
TRAC5011	3×50+P54.6+1×16	28	780	165	83	1.23	T 2000
TRAC5021	3×50+P54.6+2×16	29	850	165	83	1.23	T 2000
TRAC7001	3×70+P54.6	31	940	213	–	0.865	T 1500
TRAC7011	3×70+P54.6+1×16	32	1021	213	83	0.865	T 1500
TRAC7021	3×70+P54.6+2×16	33	1070	213	83	0.865	T 1500
TRAC7002	3×70+P70	32	990	213	–	0.865	T 1500
TRAC7012	3×70+P70+1×16	33	1060	213	83	0.865	T 1500
TRAC7022	3×70+P70+2×16	34	1120	213	83	0.865	T 1500
TRAC7031	3×70+P54.6+25	33	1045	213	101	0.90	T 1500
TRAC9501	3×95+54.6	35	1200	258	–	0.67	T 1000
TRAC9511	3×95+54.6+1×16	35	1260	258	83	0.67	T 1000
TRAC9521	3×95+P54.6+2×16	36	1320	258	83	0.67	T 1000
TRAC9522	3×95+P70+2×16	36	1360	258	83	0.67	T 1000
TRAC15002	3×150+P70	40	1670	344	–	0.445	T 1000
TRAC15012	3×150+P70+1×16	41	1740	344	83	0.445	T 1000
TRAC15022	3×150+P70+2×16	42	1810	344	83	0.445	T 1000
